10 mL, Open-Top Thickwall Polycarbonate Tube, 16 x 76mm - 25Pk
Product No:355630
Open-Top Thickwall Polycarbonate Tube
For use in Benchtop Centrifuge Rotors:
F1010 (Part Number 361221)
FX6100 (Part Number 369735); Required Adapter: 392824
GH-3.8 (Part Number 360581); Required Adapter: 359471/359150, 359484*/359162*
GH-3.8A
Resources + Tools
Product Specifications
| Platform | Floor Prep |
| Nominal Size | 16 x 76mm |
| Nominal Capacity | 10 mL |
| Closure | Open-Top Thickwall |
| Package Quantity | 25 |
Related Products or Parts
16mm Diameter Delrin Tube Adapter, Quantity of One
Adapter for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 70 Ti (part # 337922), Type 50.2 Ti (part # 337901)
Required Adapter for Tubes:
13.5 mL Thinwall Polypropylene Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 326814)
10-mL Thickwall Polypropylene Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 338907* (part # 355640)
10 mL Thickwall Polycarbonate Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 338907* (part # 355630)
13.5 mL Ultra-Clear Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 344085)
*Caps are optional for these Thickwall tubes. In the Type 70 Ti, the filling level for 355640 and 355630 is 7.5 mL. In the Type 50.2 Ti, the filling level for 355640 and 355630 is 8 mL. Maximum speeds for these open-top tubes without a cap: Polycarbonate—45,000 RPM. Polypropylene—20,000 RPM. These speeds are those which the tubes could withstand when tested at 25°C for 24 hours. Further tests have shown that the polycarbonate tube can run at 50,000 RPM for four hours.
16mm Diameter Delrin Tube Adapter, Quantity of One
Adapter for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 45 Ti (part # 339160), Type 70 Ti (part # 337922)
Required Adapter for Tubes: 13.5 mL Thinwall Polypropylene Ultracentrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 326814)
10.0 mL Thickwall Polypropylene Ultracentrifuge Tube, 16 x 76 mm; Cap/Spacer 338907* (part # 355640)
10 mL Thickwall Polycarbonate Ultracentrifuge Tube, 16 x 76 mm; Cap/Spacer 338907* (part # 355630)
13.5 mL Thinwall Ultra-Clear Ultracentrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 344085)
*Caps are optional for these Thickwall tubes. In the Type 45 Ti the filling level for 355640 and 355630, the filling level is 8 mL. Maximum speeds for these open-top tubes without a cap: Polycarbonate—30,000 RPM; Polypropylene—15,000 RPM.
10-ML Polypropylene Tube Adapter, Quantity of One
Adapters for Tubes in Beckman Coulter Rotors for use in High Performance and High Capacity Rotors:
JA-25.15 (part #s 363054, 363050)
JA 20.1 (part # 342095)
JA-20 (part # 334831)
JA-17 (part # 369691)
JS-13.1 (part # 346963)
Required Adapter for Tubes:
10 mL Polycarbonate Bottle with Screw-On Caps (part # 355672)
10 mL Open-Top Thickwall Polypropylene Tube (part # 355640)
10 mL Open-Top Thickwall Polycarbonate Tube (part # 355630)
In JS-13.1, JA-17 and JA-20 Rotors, this tube requires 870329 be used with this adapter.
In JS-13.1, this tube requires 870329 be used with this adapter.
15 mL Rubber Tube Adapter, 18 mm Diameter, quantity of one
Adapter for Tubes in Beckman Coulter Rotors
Used in High Performance and High Capacity Rotors: JA-20, JA-17, JS-13.1
Benchtop and Microcentrifuge Rotor: F0850
Required Adapter for Tubes:
Part No. 355672: 10 mL Polycarbonate Bottle with Screw-On Caps. In JS-13.1, JA-17, and JA-20 Rotors, this tube requires 342327 to be used together with this adapter.
Part No. 355630: 10 mL Open-Top Thickwall Polycarbonate Tube. In JS-13.1, this tube requires 342327 to be used together with this adapter.
16mm Diameter Polypropylene Tube Adapter Assembly for Multi-Disc, Quantity of One
Adapter for glass tubes in Beckman Coulter rotors for use in High Performance and High Capacity Rotors:
JS-3.0 (part # 339081)
JS-5.2 (part # 339087)
JS-4.0 (part # 339086)
JS-4.2 (part # 339080)
JS-4.2A (part # 366695)
16mm Diameter Tube Adapter Assembly for Multi-Disc, Quantity of Two
Color: Purple
Tube Volumes: 12 mL
Max Tube Diameter: 16-mm
Number of Places in Adapter: 19
Number of Tubes in Rotor: 76
Adapters for Tubes in Beckman Coulter Rotors used in High Performance and High Capacity Rotors: JS-4.3
Benchtop and Microcentrifuge Rotors: SX4750/4750A

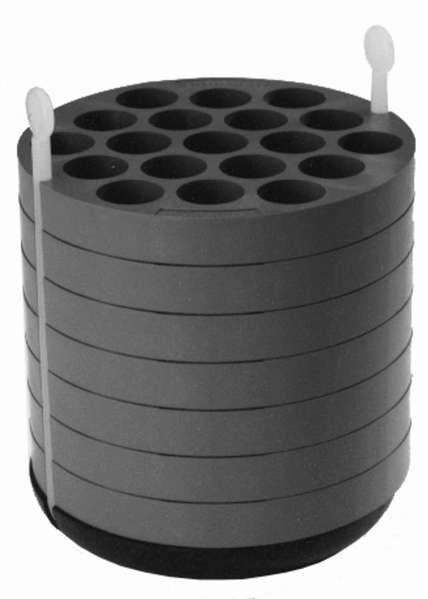

16mm Diameter Tube Adapter Assembly for Multi-Disc, Quantity of Four
Color: Purple
Tube Volumes: 12 mL
Max Tube Diameter: 16-mm
Number of Places in Adapter: 19
Number of Tubes in Rotor: 76
Adapter for Tubes in Beckman Coulter Rotors used in High Performance and High Capacity Rotors: JS-4.3
Benchtop and Microcentrifuge Rotors: SX4750/4750A
16mm Diameter Adapter Assembly Tube, Quantity of Two
Color: Purple
Replacement Rubber Pads
Part No. 344119
Tube Volumes: 12-mL
Max Tube Diameter: 16 mm
Number of Places in Adapter: 12
Number of Tubes in Rotor: 72
Adapter for Tubes in Beckman Coulter Rotors used in High Performance and High Capacity Rotors: JS-4.3
Benchtop and Microcentrifuge Rotors: SX4750/4750A
