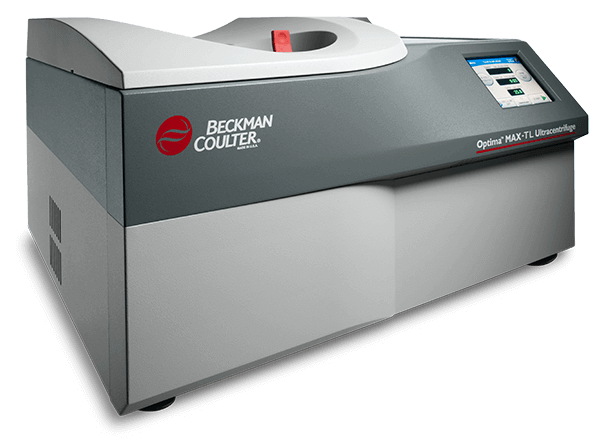

Optima MAX-TL
Product No:A95761

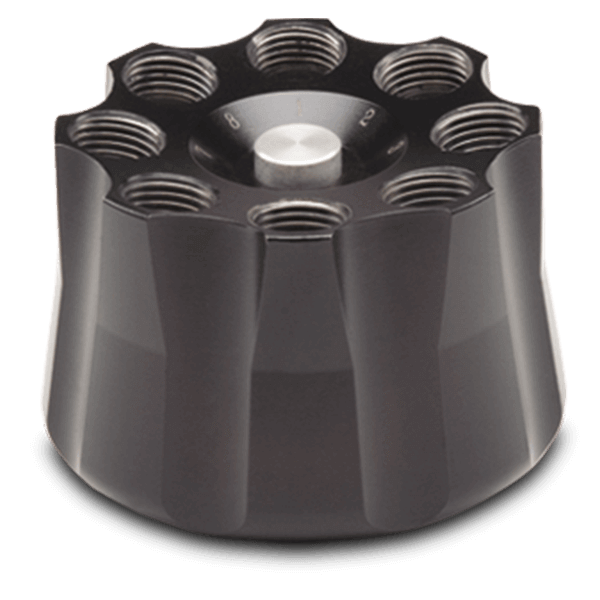

Uncomplicated, uncompromised performance! Reach the speeds you need for your separation demands with this compact, quiet and highly efficient tabletop ultracentrifuge. Packed with advanced technology yet simple to operate, the MAX-TL is designed as a total system, with the ultracentrifuges, rotors and labware manufactured and tested based on unique characteristics and interplay of dynamics to ensure optimal performance and safety. Spins at an incredible 120,000 RPM (with the TLN-120 Rotor), 657,000 x g.

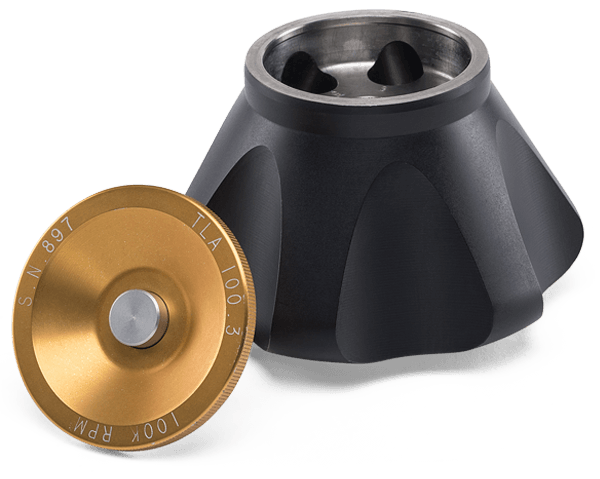

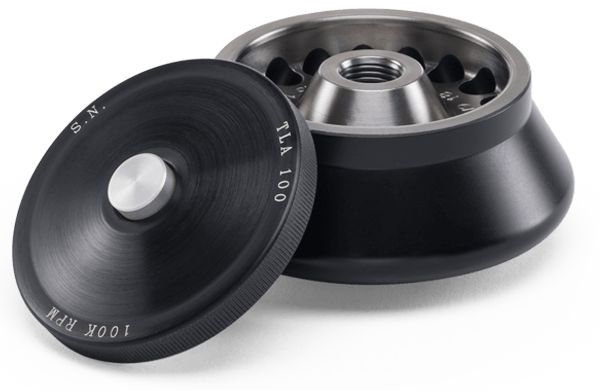

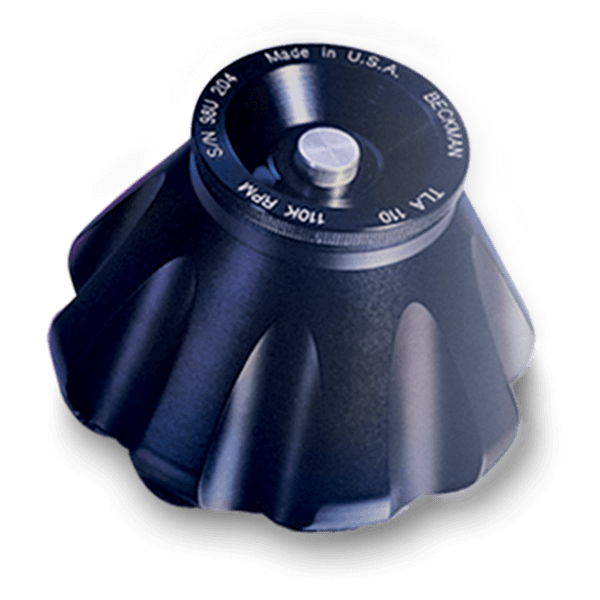

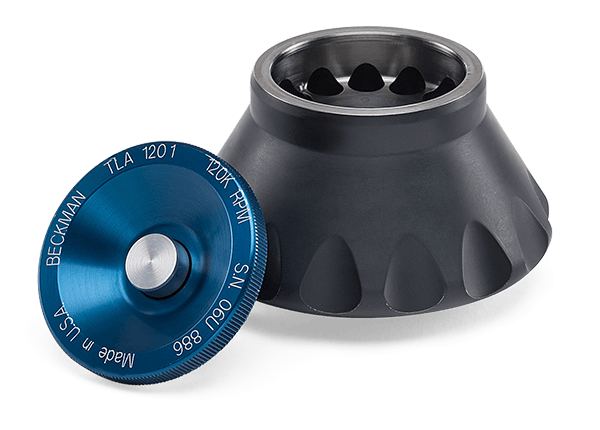

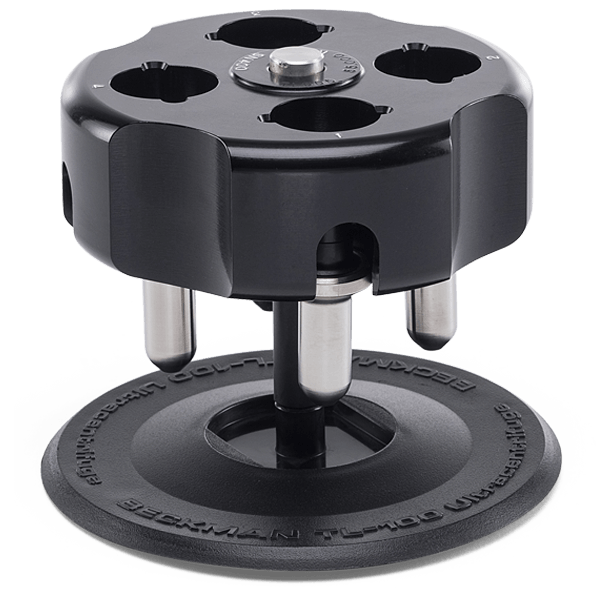

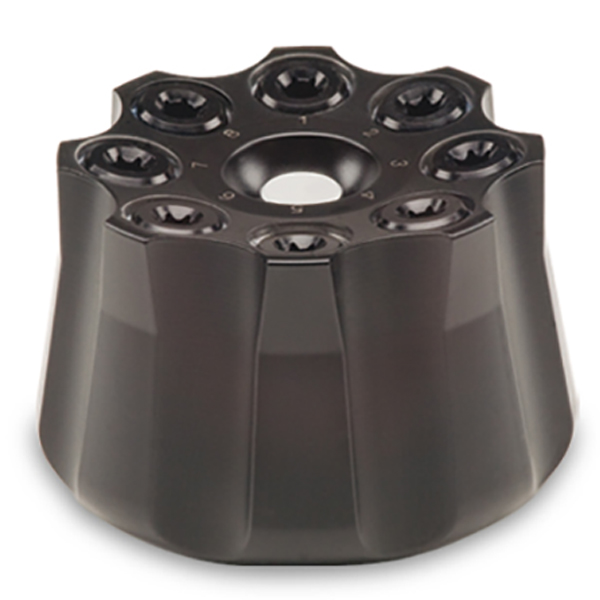

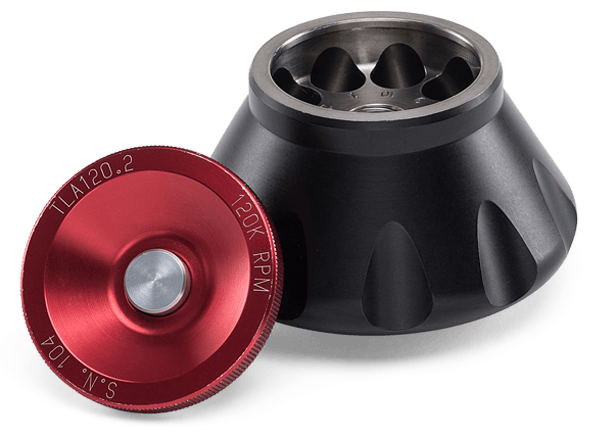

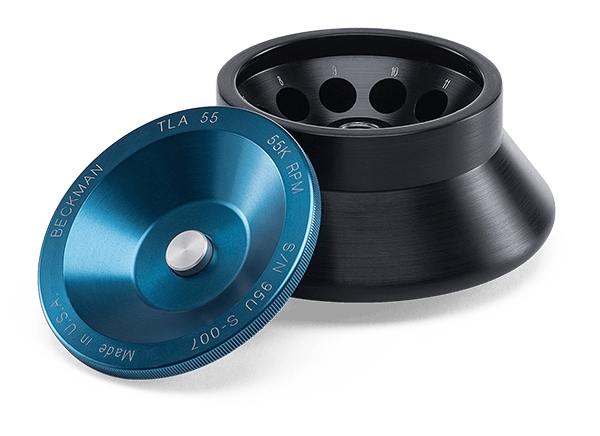

The Max TL is compatible with existing TL-Series rotors and labware. Includes multilingual software available in nine languages, the most available in the industry, for more efficiency and error-free operation across the globe. An ultracentrifuge is capable of separating high-molecular-weight compounds, viruses and subcellular particles for study.
Resources + Tools
Product Specifications
Platform | Tabletop UCF |
Maximum Speed | 120,000 rpm |
Maximum g-Force | 657000 x g |
BioSafe | No |
Acceleration | 10 acceleration profiles |
Deceleration | 11 deceleration profiles |
Timed Run | 99 min, 59 sec Continuous run, short run |
Max Capacity Volume Range | 0 - 40.8 mL |
Refrigeration System | Solid state (thermoelectric temperature control system with forced air; no coolant; no CFCs/ODCs) |
Drive Type Cooling | Variable Frequency Induction Drive with rotor overspeed ID |
Temperature Range(s) | Set temperature range: 0 to 40°C in 1°C increments |
Zonal Capability | No |
Vacuum and Pump | Below 10 microns (1.34 Pa) |
Installation Category | II |
Display | Full-color LCD touch screen |
Weight | 105 kg(231.5 lb) |
Width | 73.9 cm(29.1 in) |
Depth | 61.7 cm(24.3 in) |
Height | 39.4 cm(15.5 in) |
Clearances | 7.6 cm: side & rear |
Power Requirements | 200-240 VAC , 50/60 Hz, 100-120 VAC |
